Twin-stimuli responsive sensible nanoprobe for exact analysis and synergistic multi-modalities remedy of superficial squamous cell carcinoma | Journal of Nanobiotechnology

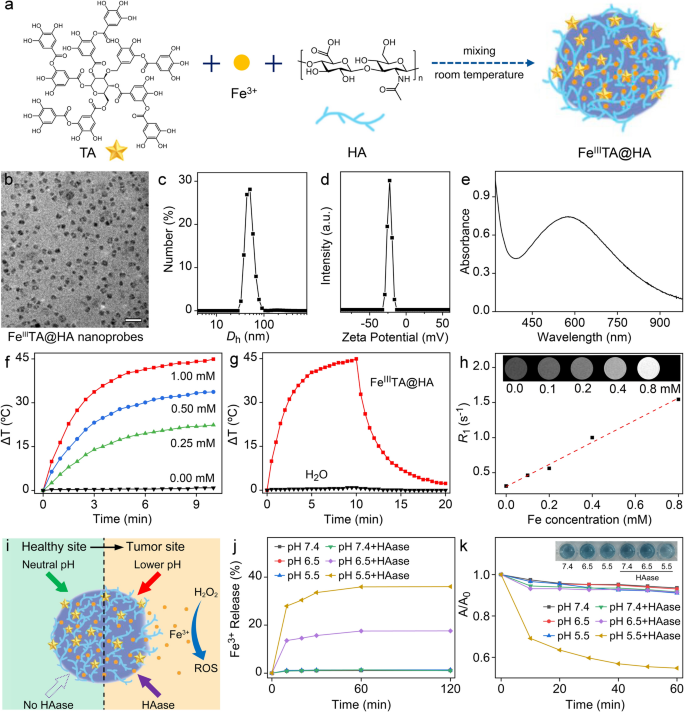

Synthesis and characterization of Fe^IIITA@HA nanoprobe

Because of the robust coordination response between Fe³⁺ and catechol teams of TA, the Fe^IIITA advanced with darkish purple shade might shortly kind in aqueous resolution (Further file 1: Fig. S1a). Nonetheless, the relatively low aqueous dispersibility and colloidal stability of those Fe^IIITA complexes will result in the quick aggregation and precipitation of them, which largely hampers their functions in biomedical fields (Further file 1: Fig. S1b). Impressed by the bio-mineralization course of, HA (M_w ~8000), a sort of macromolecule, was launched because the three-dimensional matrixes to manage the nucleation and improve the colloidal stability of Fe^IIITA in water resolution, in the meantime endowing the complexes with tumor concentrating on skill (Fig. 1a). As proven in Fig. S1, via the management of HA, the aggregation of Fe^IIITA advanced could possibly be nicely inhibited, and the steadiness of resultant complexes in water was considerably improved. To verify the nano-structure of the complexes, the morphology and the scale distribution of them was studied through the use of transmission electron microscopy (TEM). A uniform nanoprobe with the diameter of twenty-two.5 ± 3.7 nm in common was efficiently ready (Fig. 1b and Further file 1: Fig. S2). The hydrodynamic diameter (D_h) of this nanoprobe was additional investigated with dynamic gentle scattering (DLS) evaluation. As proven in Fig. 1c, the DLS profile introduced a single peak, and the common D_h of Fe^IIITA@HA nanoprobe in aqueous resolution was 50.7 nm, additional indicating that because of the current of HA, the nucleation and progress processes of nanoprobes occurred in a managed method, and no massive aggregates or precipitates shaped. As well as, the zeta potential of Fe^IIITA@HA in aqueous resolution was − 22.8 mV (Fig. 1d), suggesting that the HA residues are on the outer floor of the nanoprobes to raised notice their concentrating on skill.

In accordance with our earlier publications, Fe³⁺-polyphenol complexes usually present a large absorption band in each seen and NIR area as a result of ligand-metal cost switch (LMCT) impact [38]. This sort of cost switch transition is orbital- and spin-allowed, which turns into preferable as compared with d-d digital transition because the latter is parity forbidden. Subsequently, the Fe³⁺-polyphenol complexes usually reveals massive extinction coefficients. As proven in Fig. 1e, the corresponding Vis–NIR absorption spectra of the Fe^IIITA@HA nanoprobes displayed a large absorption band from 400 to 900 nm, with a attribute peak centered at roughly 580 nm. Primarily based on this vast absorption band, Fe^IIITA@HA nanoprobe is promising to function a photothermal remedy agent. Primarily based on this speculation, the photothermal conversion efficiency of nanoprobes has been evaluated. The Fe^IIITA@HA nanoprobes with totally different Fe³⁺ concentrations together with 0, 0.25, 0.50 and 1.00 mM had been uncovered to 650 nm NIR laser with the facility density vary of 1.0 W·cm⁻², respectively. The temperature of every resolution was recorded for 10 min underneath steady laser irradiation till the answer reached a gradual temperature (Fig. 1f). Apart from, the temperature modifications of Fe^IIITA@HA nanoprobes resolution with 1.00 mM Fe focus uncovered to laser with totally different energy density together with 0.5, 1.0, and 1.5 W·cm⁻² had been additionally studied via the identical process (Further file 1: Fig. S3). Because of this, the temperature distinction (ΔT) drastically ascended with the growing particle focus or the facility density of laser. Usually, the ΔT of the Fe^IIITA@HA resolution with Fe³⁺ focus of 1.00 mM might enhance by 44.9 °C, after irradiation for 10 min by 650 nm laser with the facility density of 1 W·cm⁻². Against this, the ΔT of pure water was solely 0.9 °C underneath the identical circumstances. This end result indicated that the nanoprobes possess excellent photothermal conversion skill.

The photothermal conversion effectivity of Fe^IIITA@HA nanoprobes was additional calculated. Because the laser was switched off, the connection between time (t) and the temperature of probe resolution (T) could possibly be expressed as [39]:

the place τ_s is the system time fixed, T_surr is the ambient temperature of the encompassing atmosphere, and T_max is the equilibrium temperature after laser irradiation. For the sake of simplicity, a dimensionless time period θ might be outlined, and the Eq. 1 might be simplified:

In accordance the heating/cooling profile of the nanoprobe resolution (Fig. 1g), τ_s might be obtained because the slope of the linear regression of the experimental information primarily based on Eq. 2 (Further file 1: Fig. S4). Accordingly, the photothermal conversion effectivity of Fe^IIITA@HA nanoprobes might be calculated to be 14.8% underneath the irradiation of 650 nm laser (the small print are offered in Further file 1), which is similar to these reported nanomaterials with wonderful photothermal skill [40].

Other than the photothermal effectivity, the MRI properties of Fe^IIITA@HA nanoprobe had been additionally investigated. Owing to the 5 unpaired d-electrons of paramagnetic Fe³⁺ ions, the present nanoprobe is anticipated to be the T₁ distinction agent for MRI. The MRI efficiency of the Fe^IIITA@HA was subsequently measured on a 7.0 T MRI scanner. As proven within the inset of Fig. 1h, Fe^IIITA@HA nanoprobes exhibited a robust T₁ distinction enhancement impact even underneath the low Fe concentrations, which brighten the aqueous resolution within the T₁-weighted imaging. By linear regression becoming of the longitudinal leisure fee (R₁) of probe resolution with totally different Fe concentrations, the longitudinal molar relaxivity (r₁) of nanoprobes was extracted as 1.58 mM^− 1 s^− 1 (Fig. 1h). Alternatively, the T₂ distinction enhancement skill was even be measured. As proven in Fig. S5, the transverse molar relaxivity (r₂) of nanoprobe was calculated as 4.50 mM^− 1 s^− 1 in response to the slope of regression curve. Accordingly, the r₂/r₁ ratio of the Fe^IIITA@HA nanoprobe was calculated as 2.85, which is relatively low. Subsequently, the excessive r₁ in addition to low r₂/r₁ ratio indicated that the as-developed nanoprobe can function a super candidate for T₁ distinction brokers for MRI [41].

Twin-stimuli triggered Fe³⁺ launch and catalytic exercise of Fe^IIITA@HA nanoprobes

In accordance with the design idea, the steadiness of Fe³⁺ ions in nanoprobes primarily is dependent upon two features. On one hand, the HA molecules on the floor of nanoprobes might be partly degraded into low-molecular-weight fragments by the HAase. Alternatively, underneath the decrease pH, the phenolic hydroxyl teams of TA molecules shall be protonated, inflicting the dissociation of Fe^III-TA complexes, and additional resulting in the discharge of Fe³⁺. Subsequently, it’s anticipated that the nanoprobes shall be secure both in impartial atmosphere or within the absence of HAase. In distinction, the Fe³⁺ ions contained in the nanoprobes might be launched solely underneath the twin stimulation of decrease pH and wealthy HAase (Fig. 1i). To verify this speculation, the Fe³⁺ launch behaviors of nanoprobes in numerous circumstances had been studied. As proven in Fig. 1j, the Fe^IIITA@HA nanoprobes had been fairly secure in impartial circumstances (pH 7.4) both within the absence or presence of HAase. In distinction, in acidic and wealthy HAase circumstances, the Fe³⁺ launch could possibly be detected. Particularly, with the presence of HAase, a quick Fe³⁺ launch course of could possibly be noticed within the first 30 min, wherein roughly 15.7% and 33.6% of the entire Fe³⁺ had been launched at tumor microenvironment pH (pH 6.5) and lysosomal pH (pH 5.5), and these launched charges nonetheless elevated progressively, and at last reached 17.6% and 36.1% till the two h, respectively. Extra importantly, neither single stimulation of decrease pH nor single stimulation of excessive HAase might set off the Fe³⁺ launch. Subsequently, this end result strongly highlighted the design of nanoprobe herein, that’s, solely the via the dual-stimuli of pH and HAase, the Fe^IIITA@HA nanoprobes could possibly be triggered to launch Fe³⁺.

In precept, the launched Fe³⁺ ions can catalyze the decomposition of H₂O₂ to supply free radicals. On this foundation, the Fe^IIITA@HA nanoprobes are promisingly to function an anti-cancer agent with peroxidase-like functionality.

In accordance with the delicate dual-stimuli triggered Fe³⁺ launched habits of the nanoprobes, the •OH technology functionality of Fe^IIITA@HA nanoprobes was investigated via the methylene blue (MB) degradation. As proven in Fig. 1ok, underneath the presence of HAase, the MB content material in aqueous resolution decreased by 45.3% underneath pH 5.5 at 1 h after handled with Fe^IIITA@HA nanoprobe and H₂O₂, whereas it solely decreased by 8.3% at pH 7.4. As well as, with out HAase, the degradation charges of MB had been lower than 10% underneath all these three pH. This end result revealed that the present nanoprobes can successfully catalyze the decomposition of H₂O₂ to generate •OH underneath the stimulation of each H⁺ and HAase. The degradation of MB might be additionally characterised by the colour change. As proven within the inset of Fig. 1ok, a conspicuous shade fading of MB resolution might be noticed after including the nanoprobes and H₂O₂ at pH 5.5 with the presence of HAase, indicated that on the MB had been largely degraded at this situation.

The above shade response indicated that the peroxidase-like functionality of nanoprobes presents a robust dual-stimuli dependency, which has the same pattern with the Fe³⁺ launch. Subsequently, it may be fairly speculated that the peroxidase-like functionality of nanoprobes is attributed to the launched Fe³⁺. General, the Fe^IIITA@HA nanoprobe can act as a dual-stimuli triggered nanozyme with peroxidase-like functionality, which reveals an ideal potential for tumor remedy.

Tumor cell binding affinity and anticancer functionality of Fe^III TA@HA nanoprobes in vitro

As a theranostic agent, the tumor-specific concentrating on skill of nanoprobes is extremely desired, whether or not imaging or remedy. In accordance with the present design rules, the HA molecules of nanoprobes are anticipated to focus on the tumor cells via CD44 receptors [21]. To confirm this speculation, cell line from human tongue SCC (SCC-9 cell line) was used because the mannequin cell. As proven in Fig. 2a, in accordance the Perls Prussian blue staining, the Fe^IIITA@HA nanoprobes exhibited robust cell concentrating on skill in a focus dependent method. In an effort to confirm the concentrating on specificity of Fe^IIITA@HA nanoprobes, the free CD44 antibody (CD44 Ab) was used as inhibitors to defend the CD44 receptor on SCC-9 cells. As proven in Fig. S6, after CD44 receptor blocking, the binding of FITC-labeled antibodies on blocked SCC-9 cells had been considerably inhibited as compared with unblocked cells (p < 0.0001), indicating that the blocking effectivity of CD44 Ab was very excessive. Extra importantly, as displayed in Fig. S7, the binding skill of 5-AF-labeled HA molecules on SCC-9 cells has been additionally considerably inhibited (p < 0.0001). These outcomes strongly confirmed that the blocked SCC-9 cells can function the suitable damaging controls. As proven in Fig. 2a, the uptake of nanoprobes by blocked SCC-9 was considerably inhibited, confirming the great concentrating on specificity of nanoprobes. This cell uptake distinction might be additional quantitatively confirmed via the blue sign integral (Further file 1: Fig. S8). Subsequently, CD44-mediated mobile uptake is the principle pathway for the nanoprobe to enter SCC-9 cells. As a possible tumor-targeted therapeutic agent, the Fe^IIITA@HA nanoprobes are anticipated to be particularly poisonous to the tumor cells, subsequently, the cytotoxicity of the Fe^IIITA@HA nanoprobes was investigated by a normal Cell Counting Package-8 (CCK-8) assay on SCC-9 cells. The cell viability outcomes given in Fig. 2b revealed that Fe^IIITA@HA nanoprobes exhibited vital cytotoxicity to tumor cells when the focus of nanoprobe (with respect to Fe³⁺) was as little as 0.4 mM.

As a result of the CD44-mediated mobile uptake is the principle pathway for the nanoprobe to enter SCC-9 cells, it may be fairly speculated that the blocking of CD44 receptors can scale back the cytotoxicity of the present nanoprobes. To verify this speculation, the CCK-8 assay was additionally carried out on CD44 Ab-pretreated SCC-9 cells. As expectation, in contrast with regular SCC-9 cells, the viability of CD44 Ab-pretreated SCC-9 cells considerably enhanced (p < 0.05 and p < 0.01 when Fe focus was 0.4 mM and 0.8 mM, respectively). This end result indicated that CD44-mediated mobile uptake is without doubt one of the conditions for the nanoprobe to exert therapeutic impact.

Contemplating the peroxidase-like functionality of nanoprobes, it may be speculated that the anti-tumor efficacy must be primarily attributed to the launched Fe³⁺ underneath the stimulation of each the HAase secreted by the tumor cells and the decrease pH contained in the cell lysosomes. To confirm this speculation, the HAase inhibitor, apigenin (AP), and a kind of Fe³⁺ chelator, deferoxamine (DFO), had been launched into the CCK-8 assays, respectively. Because of this, the cytotoxicity of nanoprobes could possibly be remarkably decreased (p < 0.001 when the Fe focus was 0.4 mM and 0.8 mM, respectively) when the tumor cells had been co-treated with AP to suppress the secretion of HAase. As well as, DFO may stop the nanoprobes to kill most cancers cells (p < 0.05 and p < 0.01 when Fe focus was 0.4 mM and 0.8 mM, respectively). These two outcomes strongly confirmed the aforementioned speculation, and additional recommended that solely the simultaneous stimulation of H⁺ and HAase can set off the antitumor exercise of nanoprobes, highlighting the sensitivity of nanoprobes in cell degree.

Moreover, on the idea of the peroxidase-like functionality of nanoprobes, the nanoprobes are anticipated to induce the buildup of intracellular ROS, and result in the ferroptosis of tumor cells. Subsequently, the extreme ROS of tumor cells was analyzed via DCFH-DA staining (Fig. 2c). Contrasting to the management teams, the robust intracellular inexperienced fluorescent sign might be clearly detected after treating with nanoprobes, revealing that the technology and accumulation of extreme ROS. In distinction, after the CD44 receptors had been blocked, the nanoprobe-induced intracellular ROS accumulation was dramatically suppressed, which was characterised by the relatively weak inexperienced sign that was comparable with the conventional tumor cells. As well as, the introduction of AP and DFO may inhibit the nanoprobe-induced ROS accumulation to fluctuate levels, indicating that the ROS accumulation is principally attributed to the dual-stimuli responsive Fe³⁺ launch of cellular-ingested nanoprobes.

As recognized, as compared with the conventional cells, the tumor cells with innate oxidative stress are extra vulnerable to the oxidative harm. Nonetheless, the generated ROS may be scavenged by the over-expressed GSH, resulting in the restricted effectivity of ROS-mediated antitumor remedy. In our design idea, the nanoprobes can’t solely induce the ROS accumulation, but in addition devour GSH molecules concurrently, as a result of the launched Fe³⁺ can oxidize the GSH to glutathione oxidized (GSSG) [42]. To verify this property, the contents of intracellular GSH had been evaluated after the tumor cells had been co-incubated with the nanoprobes. As proven in Fig. 2d, the intracellular GSH ranges of tumor cells exhibited a major lower in a nanoprobes focus dependent method, however this GSH depletion might be restricted by the CD44 blocking. Subsequently, it may be concluded that after being ingested, the nanoprobes can largely amplify the oxidative stress of tumor cells via inducing the buildup of extreme ROS and consuming the intracellular GSH as nicely, which break the redox homeostasis of tumor cells and result in the cell dying.

In our earlier research, the above ROS accumulation and GSH depletion of tumor cells could result in the ferroptosis [30, 43]. As recognized, glutathione peroxidase 4 (GPX4) can convert the possibly poisonous lipid hydroperoxides (L-OOH) to non-toxic lipid alcohols (L-OH) to guard the cells. Subsequently, the down-regulated expression of GPX4 is believed as options of ferroptosis. Accordingly, the GPX4 degree of tumor cells was evaluated via enzyme linked immunosorbent assay (ELISA). As proven in Fig. 2e, the expression of GPX4 in tumor cells was considerably down-regulated (P < 0.001) after treating with the present nanoprobes (0.5 mM with respect to Fe), but when the cells had been blocked by CD44 Ab, this pattern shall be largely attenuated. This end result indicated that the ferroptosis induced by the ingested nanoprobes is without doubt one of the fundamental pathway of the present nanoprobe for killing most cancers cells.

Other than the twin stimuli triggered catalytic anti-tumor results, the photothermal anti-tumor efficacy of Fe^IIITA@HA nanoprobes was additionally investigated via Calcein-AM and propidium iodide (PI) co-staining assay. This blended cell staining can be utilized to tell apart the stay and useless cells. For the PTT laser supply, the 650 nm laser was adopted as a result of the wavelength of it’s closed to the He-Ne laser (632.8 nm) or Krypton laser (at 647 nm), which have been adopted in scientific trails. As proven in Fig. 2f, most of cells had been destroyed after treating with 0.1 mM nanoprobes (with respect to Fe³⁺) and 650 nm laser (1.0 W·cm⁻², 10 min). In distinction, virtually no cells died after treating with solely 0.1 mM nanoprobes with out laser irradiation. The end result recommended that the present nanoprobes can function a super PTT agent for photothermal ablation of most cancers cells.

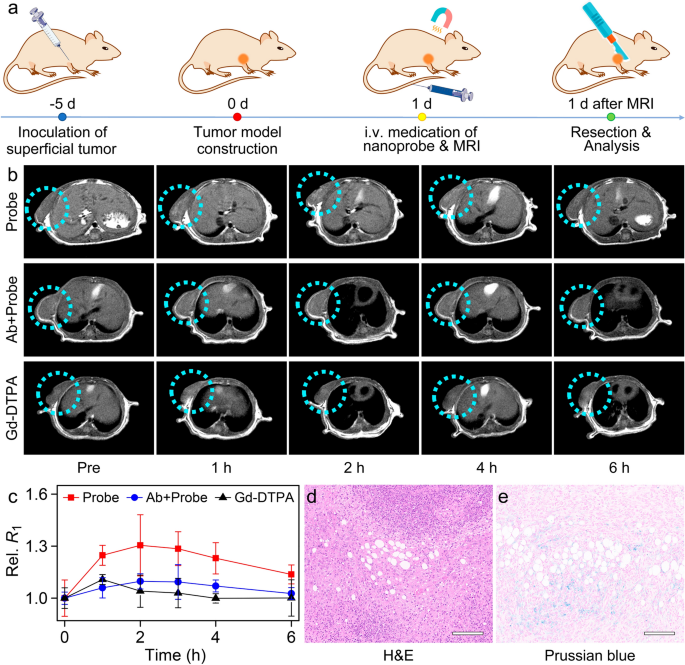

In vivo MR imaging of the SCC with Fe^IIITA@HA nanoprobes

Primarily based on the in vitro properties of Fe^IIITA@HA nanoprobes, the in vivo tumor concentrating on and imaging skill was additional investigated. The scientific T₁ distinction agent Gd-DTPA was adopted because the management. To higher mimic the superficial SCC, BALB/c nude mice bearing SCC-9 subcutaneous tumors had been employed because the animal mannequin. Particularly, the SCC-9 tumor cells had been inoculated subcutaneously on the proper armpit of nude mice. After the efficiently institution of the animal fashions, the Fe^IIITA@HA nanoprobe or Gd-DTPA was intravenously injected into the tail vein and the mice had been then subjected to the MRI. The detailed imaging procedures are given in Fig. 3a. The dose of nanoprobes was decided primarily based on the clinically dosage of Fe₃O₄ distinction agent in human MRI, i.e., ~ 50 µmol Fe³⁺ per kg physique weight [44]. Whereas using Gd-DTPA was additionally within the vary of scientific dosage, i.e. (50 µmol Gd³⁺ per kg physique weight) [45]. T₁-weighted MR pictures of subcutaneous tumor part acquired earlier than and at totally different time factors post-injection are displayed within the Fig. 3b. Accordingly, the tumor area was readily discernible at 1 h after intravenous injection of the probes. Then, the T₁ alerts of tumor area reached the depth most from 2 h. Subsequently, it was fairly evident that the Fe^IIITA@HA nanoprobes exhibited robust tumor concentrating on skill in vivo, which might present steerage for the next PTT. Thereafter, the improved T₁ distinction of tumors started to fade, however might be nonetheless distinguished till 6 h post-injection. In an effort to additional affirm the in vivo concentrating on skill of Fe^IIITA@HA nanoprobes, the subcutaneous tumor of one other mouse had been pretreated by CD44 Ab to dam the CD44 receptors. As proven within the center row of Fig. 3b, the tumor uptake of nanoprobes had been considerably decreased after the pretreatment of CD44 Ab, suggesting that the CD44 particular binding is the predominant motive for nanoprobes to concentrating on of SCC tumors in vivo.

As for the clinically management, Gd-DTPA can solely barely improve the distinction of a small a part of tumor area on the first 1 h after injection. As well as, this Gd-DTPA-enhanced T₁ sign in tumor space light up in a short time, and the distinction of tumor had already recovered to the pre-contrast degree after 2 h post-injection, as displayed within the final row of Fig. 3b.

The variation of T₁ alerts in tumor areas might be additionally quantitatively characterised via the temporal evolution of the relative native R₁ values of tumor websites pre- and post-contrast. As proven in Fig. 3c, after the administration of nanoprobes, the relative R₁ (Rel. R₁) of the tumor website reached the highest at 120 min, which elevated by 30.5%, contrasting to solely 10.7% recorded from the sign climax of Gd-DTPA distinction brokers at 60 min. General, the apparent distinction enhancements efficiency of subcutaneous tumors strongly confirmed that the superficial SCC-targeting skill of the present Fe^IIITA@HA nanoprobes in vivo.

To additional validate the energetic tumor concentrating on and tumorous accumulation of nanoprobes, one tumor bearing mice had been sacrificed at 4 h post-injection of nanoprobes, and stable tumors had been extracted for histochemical evaluation. The CD44 expression of SCC-9 stable tumor was firstly evaluated. In accordance with the immunohistochemistry end result (Further file 1: Fig. S9), CD44 receptor are considerably over-expressed inside tumor, particularly the margin area, the place the most cancers cells proliferate and invade extra quickly. Subsequently, the overexpressed CD44 supplies sufficient goal websites for the Fe^IIITA@HA nanoprobes to bind with. As well as, two adjoining tumor slices had been subjected to hematoxylin-eosin (H&E) and Prussian blue staining for the histopathological evaluation and iron evaluation. As proven in Fig. 3d and e, throughout the tumor tissue confirmed by the cell morphology in H&E staining, the Prussian blue alerts might be readily noticed. This histological evaluation implied that a certain quantity of probe sdistributed throughout the tumor at 4 h post-injection, which strongly confirmed the outstanding tumor-targeting specificity of Fe^IIITA@HA nanoprobes.

Therapeutic efficacy of Fe^IIITA@HA nanoprobes on tumors in vivo

Primarily based on the catalytic and photothermal remedy in cell degree and the tumor focused skill of nanoprobes in vitro and in vivo, the anti-tumor therapeutic efficacy of Fe^IIITA@HA nanoprobes was investigated in vivo. Identical to imaging experiments, the BALB/c nude mice bearing SCC-9 subcutaneous tumors was adopted to imitate the superficial SCC. Briefly, 20 tumor-bearing mice with tumor quantity ~ 25 mm³ had been randomly divided into 5 teams (n = 4), which had been receiving intravenous injection of PBS, PBS with 650 nm NIR laser irradiation (1 W·cm⁻², 10 min), first-line chemotherapy drug of SCC (cisplatin), Fe^IIITA@HA nanoprobes, and Fe^IIITA@HA nanoprobes with 650 nm NIR laser irradiation (1 W·cm⁻², 10 min), respectively. In an effort to optimize the PTT impact,

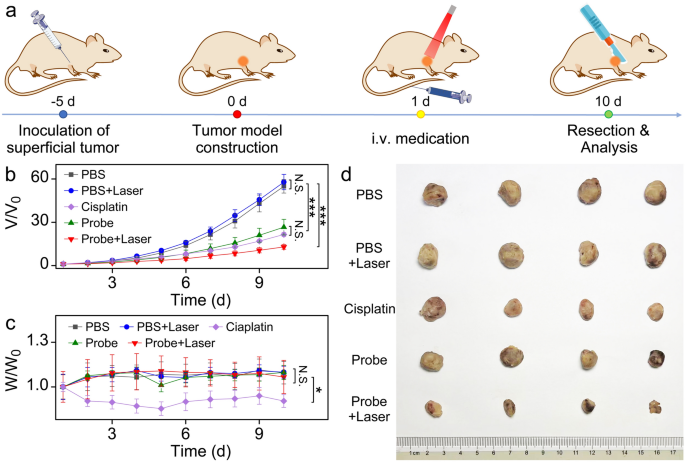

the laser irradiation time level was decided at 1–2 h post-injection in response to the MRI outcomes talked about earlier than. The schematic illustration of the remedy course of was proven in Fig. 4a.

In an effort to quantitatively consider the remedy efficacy, the tumor sizes had been measured every single day throughout the entire interval of remedy (Fig. 4b). Fairly remarkably, in contrast with PBS management group, the probe + laser remedy of tumor can considerably sluggish the tumor progress. In distinction, with out assistance from nanoprobes, 650 nm laser publicity had no vital impression on tumor progress as compared with mice handled with solely PBS. As well as, with out laser irradiation, the nanoprobe alone additionally introduced a sure therapeutic efficacy as compared with PBS group, which was comparable with the only dose of cisplatin handled group. Contemplating the catalytic remedy functionality of nanoprobes confirmed in cell degree, this in vivo therapeutic impact of nanoprobes alone might be primarily attributed to the ROS accumulation and GSH depletion induced cell dying.

In accordance with the tumor measurement information on the final day of remedy course (10 day post-treatment), the tumor receiving the Fe^IIITA@HA nanoprobes and 650 nm laser irradiation exhibited a smallest quantity (12.9-fold of the unique) in contrast with the controls (p < 0.001). As well as, the tumors receiving solely the Fe^IIITA@HA nanoprobes remedy displayed a 26.6-fold enhance in quantity, which is larger than that of laser irradiation teams, however considerably smaller than that of PBS and PBS + laser group with 54.9-fold and 57.8-fold enhance (p < 0.001), respectively. As well as, through the remedy course of, the physique weight of mice from probe + laser and probe alone teams confirmed the identical growing pattern as that of the PBS and PBS + laser teams (p > 0.05). In distinction, cisplatin would considerably result in the burden lack of mice (p < 0.05), as displayed in Fig. 4c, indicating that it could have some unwanted side effects on mice our bodies.

To instantly consider the tumor therapeutic results of those remedy teams, the mice had been sacrificed after 10-day remedy course after which the tumor tissues had been harvested. As proven in Fig. 4d, the tumors from mice receiving the Fe^IIITA@HA nanoprobes with PTT had been remarkably smaller than that of mice receiving PBS in diameter, and the scale relationship of the tumors in numerous teams ex vivo was per that measured on the final day of remedy in vivo. Subsequently, each in vivo and ex vivo outcomes recommended that the present nanoprobe exhibited a major antitumor efficacy.

General, on the idea of the above tumor remedy experiments, the Fe^IIITA@HA nanoprobes couldn’t solely stop the proliferation of tumor cells by themselves, but in addition served as a robust PTT agent for tumor physiotherapy. This mixed multimodal remedy can undoubtedly pave a brand new means for the superficial SCC remedy.

To offer a lot deeper insights into the mechanism of antitumor impact of Fe^IIITA@HA nanoprobes in vivo, the tumor tissue slices from the remedy teams together with probe + laser, probe, PBS + laser, and PBS had been additionally subjected for histochemical evaluation. In accordance with the H&E staining given within the first row of Fig. 5a, after probe-enhanced PTT of tumor, the cell nuclei had been atrophied with the deeper staining, and cell density within the tumor tissue was considerably decreased, which recommended that the PTT can largely destroy the construction of tumor cells. As well as, with out laser irradiation, the infiltration of inflammatory cells could possibly be noticed within the tumor space after the remedy of probe, suggesting that the probe could spark the immune response in opposition to tumor. Moreover, the immunohistochemical and immunofluorescence research had been additionally carried out to reveal the molecular and cell organic mechanisms of nanoprobe in opposition to most cancers. As proven within the second and third row of the Fig. 5a, the proliferating cell nuclear antigen (PCNA) and cell cycle-associated protein Ki 67 had been barely expressed within the tumor cells after the probe-enhanced PTT as compared with PBS group, which recommended that the PTT successfully inhibit the proliferation of tumor cells. As well as, each the PCNA and Ki 67 of tumor cells additionally apparently down-regulated after treating with the nanoprobe alone, which confirmed that the present nanoprobes can repeatedly stop the proliferation of tumor cells in an extended interval after one dose remedy. These outcomes are in coincidence with the.

macroscopic tumor suppressive impact proven in tumor progress curves (Fig. 4b), As well as, via the caspase 3 staining introduced within the final row of Fig. 5a, an ideal share of caspase 3-positive cells might be noticed after probe-enhanced PTT, indicating that the apoptotic course of was occurred within the tumor tissue. Furthermore, the caspase 3-positive cells might be additionally discovered within the tumor slices of mice handled with the nanoprobes alone, implying that the nanoprobes may induce the apoptosis of the tumor cells in an extended interval after remedy. Contemplating the catalytic remedy functionality of nanoprobes confirmed in vitro, it may be fairly speculated that the apoptosis of tumor cells is attributable to the oxidative stress. As well as, as compared with the probe-related remedies, the one laser remedy hardly impacts the expansion of tumor cells, which is per the tumor progress pattern proven in Fig. 4, additional highlighting the photothermal skill of the present nanoprobes.

Other than the above histochemical research, the latest research have proven that the HA molecules sure on the tumor cells can information the lymphocytes emigrate deep into the tumors, thereby enhancing the efficacy of immunotherapy (IT) [46]. Very curiously, among the many totally different lymphocytes, the CD4⁺ and CD8⁺ T cells have been confirmed to not solely suppress the tumor progress via secreting numerous cytokines, but in addition improve ferroptosis-specific lipid peroxidation in tumor cells [47]. In that case, these totally different antitumor pathways will battle in opposition to most cancers synergistically within the present work. To check this speculation, the expression ranges of CD4 and CD8 in tumor slices had been evaluated. As proven in Fig. 5b, the contents of each CD4 (crimson) and CD8 (inexperienced) was considerably up-regulated throughout the probe-treated tumor tissue in contrast with the PBS-treated one, implying that the nanoprobes can recruit a considerable amount of CD4⁺ helper T lymphocytes (Th) and CD8⁺ cytotoxic T lymphocytes (CTL) deeply into the tumor tissues. As well as, the tumor necrosis issue (TNF)-α and interferon (IFN)-γ, the cytokines that may be launched by effector CD8⁺ Th or CD4⁺ CTL to inhibit tumor progress and promote tumor immunity, had been additionally detected via immunofluorescence staining. Because of this, each the TNF-α (crimson) and IFN-γ (inexperienced) are gave the impression to be dramatically up-regulated within the tumor tissue after probe remedy. These outcomes recommended that the antitumor immune response was efficiently activated by nanoprobes, and the IT can also be one of many pathways of the nanoprobes to battle in opposition to tumor cells.

Mixed the dual-stimuli triggered Peroxidase-like functionality, and the outcomes of in vitro/in vivo experiments, it may be concluded that the Fe^IIITA@HA can shortly eradicate a big a part of tumor cells via an MRI-guided instantaneous PTT, and repeatedly stop the proliferation of the surviving tumor cells via the long-term hybrid ferroptotsis/apoptosis. In the meantime, the nanoprobes may promote the recruitment of immune cells resembling CD4⁺ Th and CD8⁺ CTL cells to build up within the tumor space to inhibit the tumor progress via the cytokines secretion and ferroptotsis enhancement. These synergistic results can carry out an impressive tumor remedy efficacy of tumor, particularly for the superficial SCC herein.

In vivo biosafety analysis of nanoprobes

Within the earlier work, after intravenous remedy, most nano-agents could be acknowledged by the immune system, after which largely captured by the reticuloendothelial system (RES), resembling lung, liver, and spleen [48]. Such undesired retentions probably trigger unpredictable unwanted side effects of the physique, which has aroused issues amongst researchers. To check the clearance of the Fe^IIITA@HA nanoprobes, two consultant BALB/c nude mice had been sacrificed at 4 h or 15 d after the injection of nanoprobes, and the principle organs of them had been extracted and minimize into slices for histological evaluation. In accordance with the Prussian staining, at 4 h post-injection, the probes had been solely marginally retained within the lung, however had already been cleared in different fundamental organs. By the 15 days, the lungs-trapped probes had been additionally eradicated fully, indicating that the present probes have wonderful biosafety with out undesired retention in vivo (Further file 1: Fig. S10). As well as, these fundamental organs of mice had been additionally examined by H&E staining to point out the cell morphology for figuring out whether or not there was potential organ damage after probe remedy (Further file 1: Fig. S11). The outcomes additional revealed that there have been no noticeable irritation or harm in any main organs induced by the Fe^IIITA@HA probes each at 4 h and 15 d.

Other than the consultant histological evaluation, the elimination strategy of the nanoprobes had been additional investigated via MR research. Particularly, three BALB/c mice had been administrated with nanoprobes, and the pharmacokinetic behaviors of nanoprobes in liver, kidney and spleen had been quantitatively measured by the R₁ values, as displayed in Fig. S12. The R₁ values of liver, spleen, and kidney elevated throughout the 48 h after remedy. Nonetheless, the R₁ values of all these organs return to the pre-injected degree after 120 h, suggesting that the nanoprobes could possibly be progressively eradicated from the physique inside a number of days. All of those outcomes indicated that the Fe^IIITA@HA nanoprobes are relatively secure at the moment dose degree for SCC theranostic functions.
