Preparation and characterization of nanoFe
NanoFe was ready as reported [16]. Briefly, FeSO4·7H2O aqueous answer was combined with 0.5% sodium CMC aqueous answer, after which ice-cold sodium borohydride (NaBH4) aqueous answer was added underneath mechanical stirring as a decreasing agent. The combination answer immediately turned black, and the iron nanoparticles have been washed and collected by magnetic separation after 30 min. The nanomorphology of the iron nanoparticles was studied by high-resolution transmission electron microscopy (HR-TEM) (Fig. 1A–D). As proven in Fig. 1A, B, the first morphology of nanoFe within the response combination took on tiny nanodots with a uniform diameter of roughly 1.2 nm. After the iron nanoparticles have been collected by magnetic separation and redispersed in CMC answer, the iron nanoparticles clustered collectively because of the stronger residual magnetic discipline, and the iron cluster confirmed an elevated measurement of roughly 20–40 nm (Fig. 1C, D).
Preparation and spectral characterization of nanoFe. TEM photos of nanoFe ready by the discount of FeSO4·7H2O utilizing NaBH4 in 0.5% CMC answer. A, B NanoFe in response combination answer. C, D NanoFe redispersed in 0.5% CMC answer after magnetic separation underneath ultrasound. E Powder XRD spectrum, F Raman spectra, G XPS Survey spectrum, and H Fe 2p3/2 and 2p1/2 spectrum of nanoFe. I Hydrogen bubbles have been produced by weak hydrolysis of nanoFe in anaerobic water. J {Photograph} of the samples: a nanoFe in response combination answer, b nanoFe in water after magnetic separation, c nanoFe redispersed in 0.5% CMC answer after magnetic separation underneath ultrasound
Construction and factor measurements, together with powder X-ray diffraction (XRD), Raman spectroscopy, and X-ray photoelectron spectroscopy (XPS), have been carried out to verify the principle compositions of nanoFe (Fig. 1E–G). In keeping with the usual PDF card of iron and its compounds, the robust peak at 44.7° must be assigned to α-Fe (PDF#06-0696), and the height at 19.3° must be assigned to Fe(OH)2 (PDF#13-0089), suggesting that the principle part of the ready nanoFe was iron and a small quantity of Fe(OH)2, which ought to come from the weak hydrolysis on the floor of nanoFe in water. Certainly, the contemporary nanoFe in oxygen-free water continued to provide small bubbles, which means that the nanoFe reacted with H2O and generated Fe(OH)2 and H2. Within the 400–800 cm−1 vary of Raman spectroscopy (Fig. 1F), the identifiable peaks additionally confirmed the presence of iron within the oxygen state on the floor of iron nanoparticles. For instance, 595 cm−1 corresponds to iosiderite (FeO), 535 cm−1 and 650 cm−1 correspond to lepidocrocite (γ-FeOOH), and 514 cm−1 and 667 cm−1 correspond to maghemite (γ-Fe2O3) [17]. XPS was additional used to verify the presence and content material of Fe(II) and Fe(III) on the floor of nanoFe (Fig. 1G, H). The height space ratio of the three valence states is 33.4:35.5:31.1 (Extra file 1: Desk S1), indicating the comparatively excessive content material oxidation state of Fe on the floor of the nanoFe, most likely because of the speedy oxidation of Fe(II) to Fe(III) when it’s uncovered to oxygen. Determine 1I, J reveals the oxidation of nanoFe in water. The dispersed nanoFe within the CMC answer confirmed a black–inexperienced coloration and adjusted to yellow, which is the attribute coloration of Fe(III), after remaining nonetheless for 3 d.
Acute toxicity of nanoFe
The security of nanoFe was evaluated by an acute oral toxicity experiment. After meals deprivation for 12 h, feminine and male mice (10 every) have been intraperitoneally injected with 300 mg/kg nanoFe 3 instances at an interval of 6 h. Management feminine and male mice (2 every) have been injected intraperitoneally with the identical quantity of deoxygenated water in the identical method. Meals and water have been supplied 4 h later. Their motion, chew and sup, feces mortality, and physique weight have been monitored repeatedly for 14 d. As proven in Extra file 1: Desk S2 and Extra file 1: Fig. S1A, no dying and no irregular scientific indicators, associated to urge for food, diarrhea, hypnosia, mortality and weight change, have been noticed throughout an investigation interval of 14 d. As well as, hematoxylin–eosin (H&E) staining revealed no obvious morphological change or harm of cardiac and renal tissue in management mice and nanoFe-treated mice, whereas the slight harm was noticed within the liver (Extra file 1: Fig. S1B). Subsequently, we noticed the impact of 20 mg/kg nanoFe (3 instances at an interval of 1 d, the maxium protecting dosage used on this examine) on tissue construction of male mice, and located virtually no toxicity on the the center, liver, and kidney (Extra file 1: Fig. S1C). These outcomes instructed {that a} sure dose of nanoFe prompted no poisonous results in mice.
Protecting results of nanoFe remedy in opposition to sepsis in mice
The CLP methodology is among the classical fashions because it supplies a greater illustration of the pathophysiology of human sepsis [18]. Therefore, the CLP-induced sepsis mannequin was first efficiently constructed for subsequent experiments (Extra file 1: Fig. S2A). Then, mice got completely different concentrations of nanoFe (5, 10, and 20 mg/kg) to watch the survival fee inside 96 h post-CLP. As proven in Fig. 2A, roughly 50% of the CLP mice died. Nevertheless, after pretreatment with completely different concentrations of nanoFe, the survival fee within the nanoFe + CLP group elevated considerably to greater than 60%, amongst which the survival fee of mice handled with the ten mg/kg and 20 mg/kg nanoFe teams was increased (vs. the CLP group, P < 0.05). Moreover, the sepsis rating of 20 mg/kg nanoFe was decrease than that of 10 mg/kg nanoFe (Fig. 2B-C, P < 0.05). Subsequently, 20 mg/kg nanoFe was chosen for additional useful experiments. As proven in Fig. 2D, nanoFe may additionally elevate the anal temperature of CLP mice (P < 0.05). Routine blood parameters confirmed that, in contrast with the CLP group, nanoFe remedy markedly elevated the numbers of white blood cells (WBCs) and platelets (PLTs) whereas lowering the degrees of pink blood cells (RBCs) (Fig. 2F, P < 0.05). The outcomes instructed the protecting roles of nanoFe in sepsis.
Protecting results of nanoFe remedy in septic mice. A Survival curves indicating the survival of mice after remedy of various concentrations of nanoFe (5, 10, and 20 mg/kg). Mortality was noticed inside 96 h. (n = 10 for every group). B The sepsis rating recorded after remedy with nanoFe (10 mg/kg) and nanoFe (20 mg/kg) (n = 10 for every group). C The sepsis rating of Sham, CLP, and nanoFe (20 mg/kg) + CLP mice (n = 6 for every group). D The anal temperature (n = 6 for every group). E Blood biochemical parameters (n = 6 for every group). F Blood routine parameters (n = 6 for every group). *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 vs. Sham or vs. CLP (panel A and C–F) or vs. nanoFe (10 mg/kg) + CLP (panel B); ns, non-significant. Statistical evaluation of B was carried out utilizing t-test. Statistical evaluation of the opposite knowledge was used ANOVA
Protecting results of nanoFe remedy in opposition to septic myocardial harm in mice
Then, the myocardial construction was examined, and cardiac operate was assessed in septic mice. H&E staining revealed extra extreme myocardial tissue harm in septic mice, as evidenced by extra myocardial fibers, aggravated interstitial edema, and destroyed mobile integrity (vs. the sham group, Fig. 3A). Constantly, Masson’s trichrome staining confirmed the considerably elevated cardiac fibrosis in CLP mice (vs. the sham group, Fig. 3B). The echocardiographic evaluation revealed a big discount in cardiac output (CO), stroke quantity (SV), left ventricular diastolic quantity (LVEDV), and left ventricular systolic quantity (LVESV) in CLP mice in comparison with Sham mice (Fig. 3C–F, P < 0.05). Extra echocardiographic knowledge are additionally introduced in Extra file 1: Fig. S3. Equally, the degrees of serum biomarkers of myocardial harm, corresponding to lactic dehydrogenase (LDH), creatine kinase (CK), and aspartate aminotransferase (AST), rose considerably after CLP harm (vs. the sham group, Fig. 2E, P < 0.05). Nevertheless, the adjustments in cardiac construction, the lower in cardiac operate indicators, and the rise in blood biochemical parameters induced by CLP have been all considerably reversed in nanoFe-treated mice (vs. the CLP group, Figs. 2E and 3, P < 0.05). The above knowledge instructed that nanoFe remedy exerted protecting results in opposition to myocardial harm each structurally and functionally in septic mice.

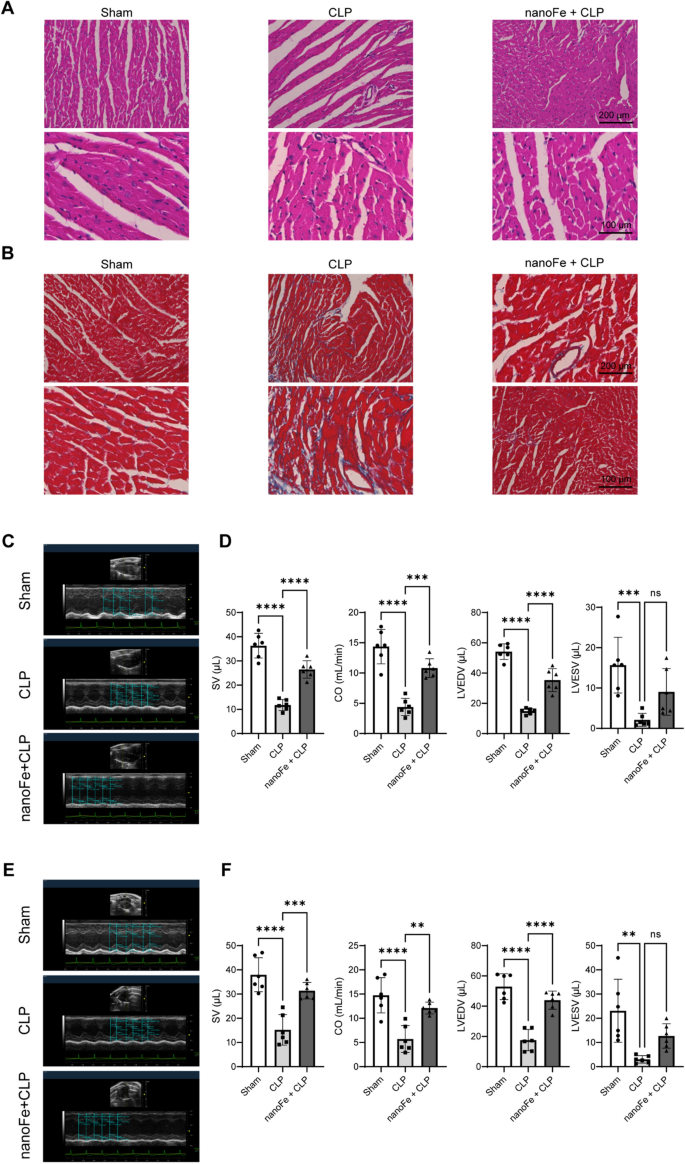

Protecting results of nanoFe remedy in opposition to septic myocardial harm in mice. A Consultant photos of H&E staining of mouse coronary heart tissues. B Consultant photos of Masson’s trichrome staining of mouse coronary heart tissues. C Consultant echocardiography photos within the lengthy axis. D SV, CO, LVEDV, and LVESV statistical graphs of the lengthy axis. E Consultant echocardiography photos within the brief axis. F SV, CO, LVEDV, and LVESV statistical graphs of the brief axis. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 vs. Sham or vs. CLP; ns, non-significant. n = 6 for every group. Statistical evaluation of the information was used ANOVA
Results of nanoFe remedy on the myocardial inflammatory response in septic mice
Irritation is among the main traits of sepsis and is concerned in detrimental pathways activated throughout sepsis, finally resulting in cardiac dysfunction and dying [19]. Ly6G is a marker of macrophage and neutrophil accumulation. As proven in Fig. 4A, CLP led to elevated myocardial contents of Ly6G within the coronary heart, however the extent was a lot much less within the nanoFe + CLP group (vs. the CLP group, P < 0.05). Equally, the elevated ranges of the inflammatory components interleukin (IL)-6 and tumor necrosis factor-α (TNF-α) have been additionally ameliorated by nanoFe, as demonstrated by immunohistochemistry (IHC) staining and quantitative real-time PCR (qRT-PCR) (vs. the CLP group, Fig. 4B–D, P < 0.05). As well as, nanoFe considerably diminished the mRNA ranges of nucleotide-binding area leucine-rich repeat and pyrin area containing receptor 3 (NLRP3), cysteinyl aspartate particular proteinase (Caspase-1), IL-1β, and chemokine CXCL2 (vs. the CLP group, Fig. 4D, P < 0.05). These knowledge collectively confirmed that nanoFe remedy alleviated CLP-induced myocardial irritation.
Protecting results of nanoFe remedy on myocardial inflammatory response in septic mice. Consultant images of IHC staining of A (Ly6G), B (IL-6), and C (TNF-α). D, qRT-PCR evaluation of myocardial NLRP3, Caspase-1, IL-1β, IL-6, TNF-α, and CXCL2. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 vs. Sham or vs. CLP; ns, non-significant. n = 6 for every group. Statistical evaluation of the information was used ANOVA
Results of nanoFe remedy on myocardial oxidative stress and antioxidative signaling in septic mice
The examine then evaluated myocardial ROS technology by in situ dihydroethidium (DHE) staining and located that ROS ranges elevated considerably in CLP mice, whereas a big lower was noticed in nanoFe-treated septic mice (vs. the CLP group, Fig. 5A, P < 0.05). The IHC staining of NOX2 (ROS marker) indicated related adjustments (vs. the CLP group, Fig. 5B, P < 0.05). As well as, the presence of antioxidative mediators, together with nuclear factor-related Issue 2 (Nrf2), NAD(P)H dehydrogenase quinone-1 (NQO1), and heme oxygenase-1 (HO-1), was detected by Western blot. As proven in Fig. 5C, D, myocardial Nrf2 and NQO1 confirmed a declining sample after CLP, whereas nanoFe reversed this modification and enhanced the expression of HO-1 (vs. the CLP group, P < 0.05). These outcomes recommend that nanoFe remedy mitigated oxidative stress throughout septic myocardial harm.
Protecting results of nanoFe remedy on myocardial oxidative stress in septic mice. A Consultant images of in DHE of mouse coronary heart tissues. B Consultant images of IHC staining of NOX2. C Consultant Western blot photos of Nrf2, NQO1, and HO-1. D Quantitative evaluation of C was decided with GAPDH for normalization. Statistical evaluation of the information was used ANOVA
Results of nanoFe remedy on myocardial endoplasmic reticulum stress (ERS), apoptosis, mitochondrial dysfunction, and the AMPK signaling pathway in septic mice
To elucidate the molecular mechanisms of the protecting results that nanoFe remedy had on septic myocardial harm, the alterations of different important sepsis-related pathophysiological processes, corresponding to ERS, mitochondrial dysfunction, and apoptosis, have been additional investigated in coronary heart tissues from CLP mice.
Convincing proof has instructed the position of ERS in septic coronary heart failure [20]. The degrees of ERS-related proteins, together with PKR-like endoplasmic reticulum kinase (PERK), p-PERK, C/EBP homologous protein (CHOP), activating transcription Issue 6 (ATF6), and glucose-regulated protein 78 (GRP78), within the myocardium of septic mice have been evaluated. Western blot outcomes demonstrated that CLP harm markedly elevated the degrees of p-PERK and p-PERK/PERK, whereas decreased the degrees of CHOP, ATF6, and GRP78. In distinction, these results have been blunted by nanoFe remedy, indicating the regulation of ERS pathways could also be concerned within the safety of nanoFe in opposition to septic myocardial harm (vs. the CLP group, Fig. 6A, B, P < 0.05). Relating to myocardial apoptosis, in contrast with the CLP group, the expression of proapoptotic Bcl-2-associated X (Bax) declined considerably whereas the degrees of the prosurvival B-cell lymphoma-2 (Bcl2) rose in nanoFe-treated septic mice (Fig. 6A, B, P < 0.05).

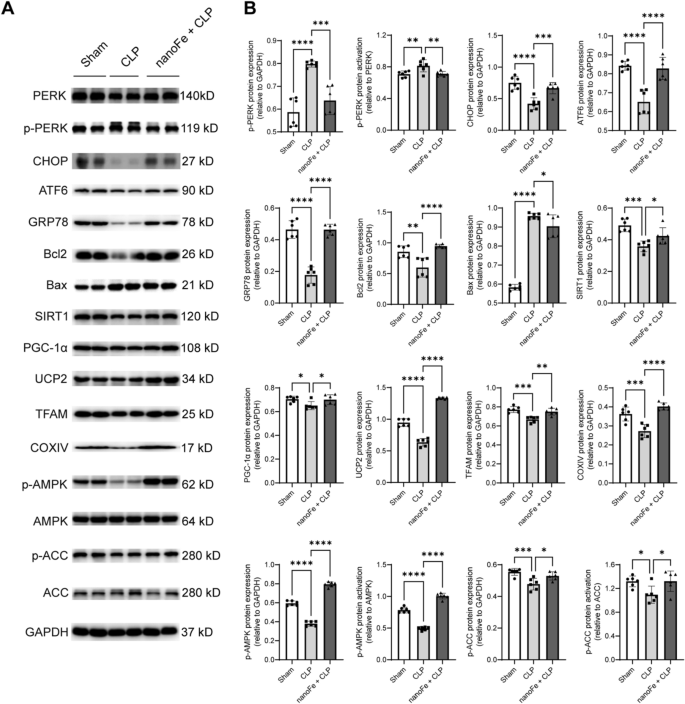

Results of nanoFe remedy on myocardial ERS, mitochondrial dysfunction, and apoptosis in septic mice. A Consultant Western blot photos of PERK, p-PERK, CHOP, ATF6, GRP78, Bcl2, Bax, SIRT1, PGC-1α, UCP2, TFAM, COXIV, p-AMPK, AMPK, p-ACC, and ACC. B Quantitative evaluation of A was decided with GAPDH for normalization. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 vs. Sham or vs. CLP; ns, non-significant. n = 6 for every group. Statistical evaluation of the information was used ANOVA
Mitochondrial biogenesis regulatory applications, such because the silent data regulator 1/peroxisome proliferator-activated receptor coactivator-1α/mitochondrial transcription Issue A (SIRT1/PGC-1α/TFAM) pathway, uncoupling protein 2 (UCP2), and cytochrome oxidase subunit IV (COXIV), can enhance mitochondrial biogenesis and cardiac dysfunction throughout sepsis [21, 22]. This examine proved that the degrees of SIRT1, PGC-1α, UCP2, TFAM, and COXIV all decreased in septic mice, the impact of which was reconciled by nanoFe remedy (vs. the CLP group, Fig. 7A, B P < 0.05), indicating the constructive position of nanoFe in bettering mitochondrial biogenesis throughout sepsis.
Results of CC on the protecting position of nanoFe in septic mice. A The sepsis rating. B Blood biochemical parameters. C Blood routine parameters. D Consultant echocardiography photos of the lengthy axis. E SV, CO, LVEDV, LVESV, LVPWs, LVPWd, and LV Mass statistical graphs of the lengthy axis. F Consultant echocardiography photos of the brief axis. G SV, CO, LVEDV, LVESV, LVPWs, LVPWd, and LV Mass statistical graphs of the brief axis. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 vs. Sham or vs. CLP or nanoFe + CLP; ns, non-significant. n = 6 for every group. Statistical evaluation of knowledge was carried out utilizing ANOVA
The AMP-activated protein kinase (AMPK)/acetyl-CoA carboxylase (ACC) signaling pathway is a basic myocardial safety pathway of power metabolism. Nevertheless, sepsis could cause a speedy lower within the phosphorylation and exercise of AMPK and ACC [23]. Constantly, the outcomes revealed a big decline in AMPK and ACC phosphorylation ranges in septic mice, whereas the discount in these ranges was reversed by nanoFe remedy (vs. the CLP group, Fig. 6A, B, P < 0.05). These outcomes recommend that the AMPK/ACC signaling pathway participated within the cardioprotection of nanoFe throughout sepsis.
AMPK inhibition worsened CLP-induced myocardial harm
To additional determine whether or not AMPK signaling is extra vital as the main mechanism of nanoFe modulation, mice have been pretreated with Compound C (CC, an AMPK inhibitor) and nanoFe. As proven in Fig. 7A, CC markedly reversed the nanoFe-induced lower within the sepsis rating (vs. the nanoFe + CLP group, P < 0.05). NanoFe-mediated downregulation of AST, LDH, and RBC and upregulation of ALB, WBC, center cells (MID), GRA, and PLT have been additionally reversed by CC remedy (vs. the nanoFe + CLP group, Fig. 7B, C, P < 0.05). Specifically, CC reversed the nanoFe-induced enhance in SV and CO and reduce in LVPWs and LVPWd in CLP mice (vs. the nanoFe + CLP group, Fig. 7D–G, P < 0.05). Taken collectively, these knowledge recommend that CC nullified nanoFe-offered cardioprotection in opposition to CLP harm and AMPK performs a key position in nanoFe safety in opposition to septic myocardial harm.
RNA-seq illustrated the great transcriptome regulated by nanoFe in septic mice
To acquire complete perception into the pathological regulatory mechanism of nanoFe on CLP harm, a transcriptomic evaluation in septic hearts from mice was carried out. Organic replicates clustered collectively amongst all teams, whereas every experimental group exhibited a definite transcriptome profile. RNA-seq revealed 87 upregulated genes and 235 downregulated genes within the nanoFe + CLP group, suggesting that the alteration of those genes relies on nanoFe remedy (Fig. 8A, B).
RNA sequencing-identified transcriptome regulated by nanoFe in septic mice. A A volcano plot displayed differentially expressed mRNAs. The blue and pink elements indicated > twofold decreased or elevated expression of the dysregulated mRNAs in cardiac tissues, respectively (P < 0.05). B Cluster evaluation of differential genes in every group. C High 20 GO enrichment for the up-regulated gene classes between the CLP group and the nanoFe + CLP group (P < 0.05). D High 20 GO enrichment for the downregulated gene classes between the CLP group and the nanoFe + CLP group. E High 20 KEGG enrichment for up-regulated pathways between the CLP group and the nanoFe + CLP group (P < 0.05). F High 20 KEGG enrichment for downregulated pathways between the CLP group and the nanoFe + CLP group (P < 0.05)
As well as, gene ontology (GO) was carried out to find out useful adjustments throughout septic myocardial harm after nanoFe remedy. Upregulated genes within the nanoFe + CLP group included genes concerned in constructive regulation of glomerular mesangial cell proliferation and membrane budding concerning the organic course of (BP); RNA polymerase II transcription issue binding and beta-catenin binding concerning the organic molecular operate (MF); neuronal postsynaptic density and nuclear chromatin concerning the mobile part (CC) (Figs. 8C and 9A). Downregulated gene classes within the nanoFe + CLP group included immune system course of, protection response to virus, and innate immune response (BP); hydrolase exercise, performing on acid anhydrides and GTP binding (MF); symbiont-containing vacuole membrane and cytoplasm (CC) (Figs. 8D and 9B).
Extra knowledge of RNA sequencing between the CLP group and the nanoFe + CLP group. A GO evaluation of the up-regulated gene classes (P < 0.05). B GO evaluation of the downregulated gene classes (P < 0.05). C KEGG pathway evaluation of up-regulated pathways (P < 0.05). D KEGG pathway evaluation of downregulated pathways (P < 0.05). E Expression profiles in coloration indicated important ones (P < 0.05). Crimson indicated up-regulated and inexperienced indicated downregulated. Profile quantity (up left), gene quantity (backside left), and pattern (line) in every profile have been additionally labeled
Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway evaluation additional revealed that nanoFe upregulated the pathways of nitrogen metabolism (Figs. 8E and 9C) and concurrently downregulated the pathways pertinent to the TNF signaling pathway, influenza A, JAK/STAT signaling pathway, and malaria (Figs. 8F and 9D).
All important mRNAs have been additional divided into 8 completely different patterns of dynamic expression. The variety of mRNAs and P values for every group have been calculated, amongst which 4 patterns have been important: sample 5 (upregulated after CLP however downregulated after remedy with nanoFe), sample 2 (downregulated after CLP however upregulated after remedy with nanoFe), sample 1 (downregulated after CLP and remained after remedy with nanoFe), and sample 6 (upregulated after CLP and remained fixed after remedy with nanoFe) (Fig. 9E). The outcomes additional confirm that nanoFe remedy exerted a big affect on the transcriptome of septic myocardial harm.
